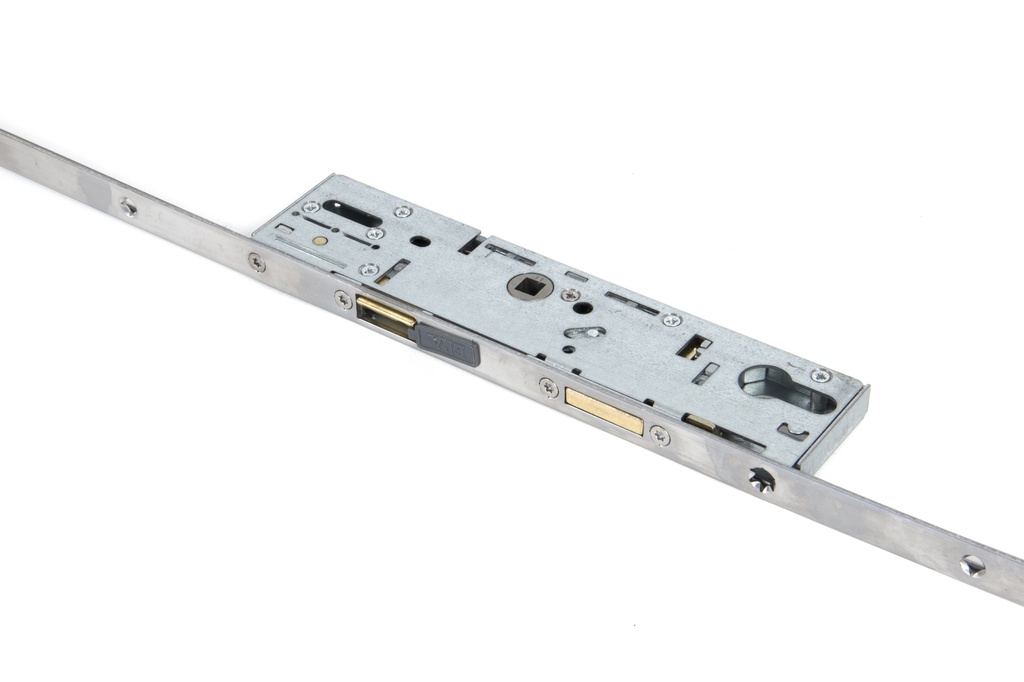

SS 45mm Backset Hook 3 Point Door Lock - 91889

SS 45mm Backset Hook 3 Point Door Lock - 91889

Intended for use with our 92mm centre espagnolette locking handle sets.

Product Details

• Overall Height: 2250mm
• Centre Case Size: 221mm (H) x 14.5mm (T)
• Case Depth: 63mm
• Backset: 45mm
• Linear Lock Box Size: 43mm (D) x 110mm (H) x 14.5mm (T)
• Min./Max. Door Height: 1500mm - 2250mm

Product Features

• Can be turned into a 5-point lock by using shoot bolts for 3-point locks (product code 91886).
• Matching keeps can be ordered separately.
• Minimum/maximum door height (for 5-point lock): 1970mm/2105mm.

Product Finish

SS is a perfect match for our Pewter, Polished Nickel, Polished Chrome, and Satin Chrome Products. The stainless steel base material helps protect against rusting and oxidation.
